Avon Series

With breakthrough Twin Drive Transmission Line technology, combined with real wood veneers, hand crafted and polished to perfection - Castle Avon is a delight to both eyes and ears.

Determined to both perfect and take advantage of the Transmission Line speaker principles, Castle engineers embarked on a three year investigation into the acoustics, mathematics and all performance aspects of such loudspeakers. The result was a break through in TL Theory. In its simplest explanation, driving the line at two distinct points overcomes both the damping problem and loss of energy, resulting in a smooth power response from the lowest fundamentals right through to the midrange frequencies.

Castle has called this breakthrough technology TDTL - Twin Drive Transmission Line and is, for the very first time, in the new Avon floorstanding loudspeakers.

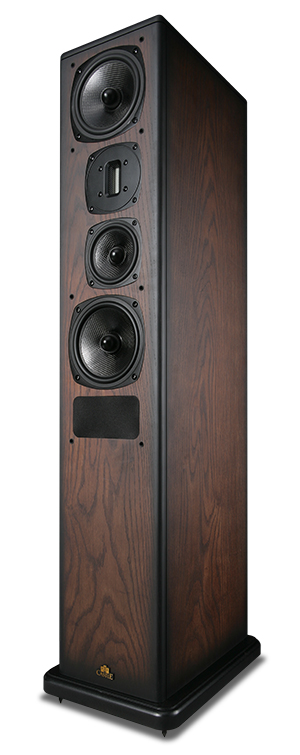

Avon 4 features twin castle 130m woven fibre cone drives in a TL tuned to 38Hz, while Avon 5 features twin castle 150mm Woven Carbon Fibre cone drivers in a TL tuned to 32Hz. In room the Avon 5 achieves a bass extension (-6dB) down to 30Hz making it a truly wideband speaker.


Avon Art 02.jpg

The Avon Series provides delicacy and sparkling detail in the way they reproduce musical instruments and voices.

Avon Series does not just focus solely on the TDTL Transmission Line technology.

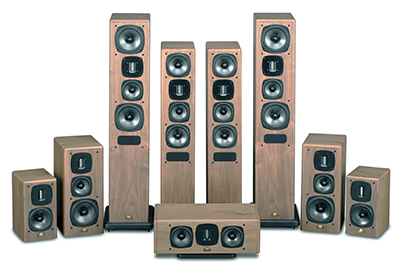

In addition to the Avon 4 and 5 floorstanders are the Avon 1 and the Avon 2 bookshelf speakers and the Avon C centre-channel speaker meaning you can configure Avon speakers for conventional stereo systems and full-home cinema setups as you desire. The other speakers in the series use a combination of Single Drive Extended Line and Twin Drive Extended Line technology for a dramatic sound. Below pictured is the Avon C, finished in Antique Oak.


To equally match the low end clarity of the TDTL technology all Avon speakers are paired with an advanced Ribbon HF.

Avon's ribbon tweeter design uses an ultra-thin alloy sandwich precisely positioned in a powerful transverse magnetic field, where the ribbon acts as both the voice coil and diaphragm. In this way the whole radiating area is driven directly and responds accurately to the music signal without energy storage or breakup. Together, the direct drive and low mass of the ribbon provide superb musical detailing and transient attack, resolving the harmonic content of the music in a thrilling and natural way.

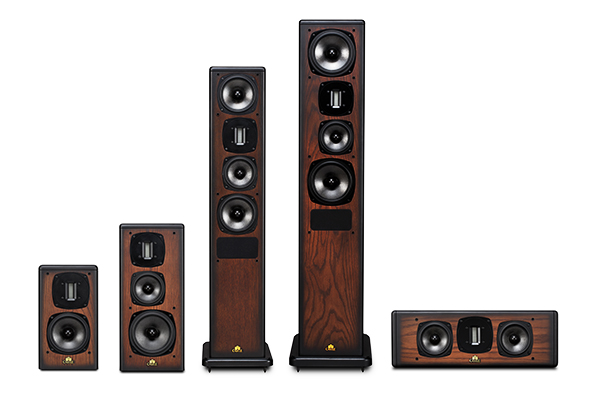

Right to left: Avon 1, Avon 2, Avon 4, Avon 5 and Avon C in Antique Oak.

Avon Series is available in a choice of seven hand-finished, real wood veneers from around the world and whenever possible, from properly managed forest resources.



Right to left: Walnut, Rosewood, Natural Oak, Mahogany, Antique Oak, Black Oak and Cherry.



The dry, low bass of the transmission line better resolved the character of the bass instruments than just about any loudspeaker I’ve heard before
— Hi-Fi World, 5 Globe Award, October 2015

Specifications



Avon 1

  • 2-way bookshelf speaker

  • SDEL - Single Drive Extended Line

  • 130mm Woven Carbon Fibre Woofer

  • 12 x 45 mm True Ribbon

  • 87dB Sensitivity

  • 25-100W Recommended Amp. Power

  • 95dB Peak SPL

  • 8Ω Compatible

  • 4.3Ω Minimum Impedance

  • 60Hz ~ 20kHz Frequency Response

  • 55Hz Bass Extension

  • 320 x 180 x 230mm

  • 5.8kg each



Avon 2

  • 3-way bookshelf speaker

  • SDEL - Single Drive Extended Line

  • 150mm Woven Carbon Fibre Woofer

  • 115mm Woven Carbon Fibre Mid-range

  • 12 x 45 mm True Ribbon

  • 88dB Sensitivity

  • 25-100W Recommended Amp. Power

  • 96dB Peak SPL

  • 8Ω Compatible

  • 3.3Ω Minimum Impedance

  • 50Hz ~ 20kHz Frequency Response

  • 45Hz Bass Extension

  • 475 x 210 x 310mm

  • 10.5kg each

Avon 5

  • 3-way floorstanding speaker

  • TDTL - Twin Drive Transmission Line

  • 150mm Woven Carbon fibre Cone Woofer x2

  • 115mm Woven Carbon fibre Cone Mid-range

  • 12 x 45 mm True Ribbon

  • 89dB Sensitivity

  • 25-100W Reccomended Amp. Power

  • 97dB Peak SPL

  • 8Ω Compatible

  • 3.8Ω Minimum Impedance

  • 35Hz ~ 20kHz Frequency Response

  • 30Hz Bass Extension

  • 1110 x 210 x 365mm

  • 24kg each

Avon 4

  • 3-way floorstanding speaker

  • TDTL - Twin Drive Transmission Line

  • 130mm Woven Carbon Fibre Cone Woofer x 2

  • 115mm Woven Carbon Fibre Cone Mid-range

  • 12 x 45 mm True Ribbon

  • 89dB Sensitivity

  • 25-100W Recommended Amp. Power

  • 97dB Peak SPL

  • 8Ω Compatible

  • 3.5Ω Minimum Impedance

  • 45Hz ~ 20kHz Frequency Response

  • 40Hz Bass Extension

  • 955 x 180 x 310mm

  • 17.6kg each

Avon C

  • 3-way centre speaker

  • TDEL - Twin Drive Extended Line

  • 150mm Woven Carbon fibre Cone Woofer x2

  • 12 x 45 mm True Ribbon

  • 90dB Sensitivity

  • 25-100W Reccomended Amp. Power

  • 97dB Peak SPL

  • 8Ω Compatible

  • 3.6Ω Minimum Impedance

  • 65Hz ~ 20kHz Frequency Response

  • 60Hz Bass Extension

  • 214 x 520 x 320mm

  • 14kg each
